Transmission Application Solutions for the Chemical Industry

Industry Characteristics:

1. The drive system operates continuously at full load throughout the day. Any equipment failure can cause significant impacts such as production shutdowns, which requires gearboxes to have high reliability.
2. The continuous emergence and application of new processes and new equipment necessitate more comprehensive and advanced transmission systems.
3. Transmission systems should have higher efficiency to meet energy-saving and emission-reduction requirements.
4. With a large number of equipment, wide distribution, and difficulties in inspection, online monitoring of gearboxes and intelligent equipment management are future trends.
5. To ensure long-term stable operation of equipment, spare parts must have extremely short supply cycles.

Application:

Coal powder and coal slurry processing equipment

1. Coal Mill

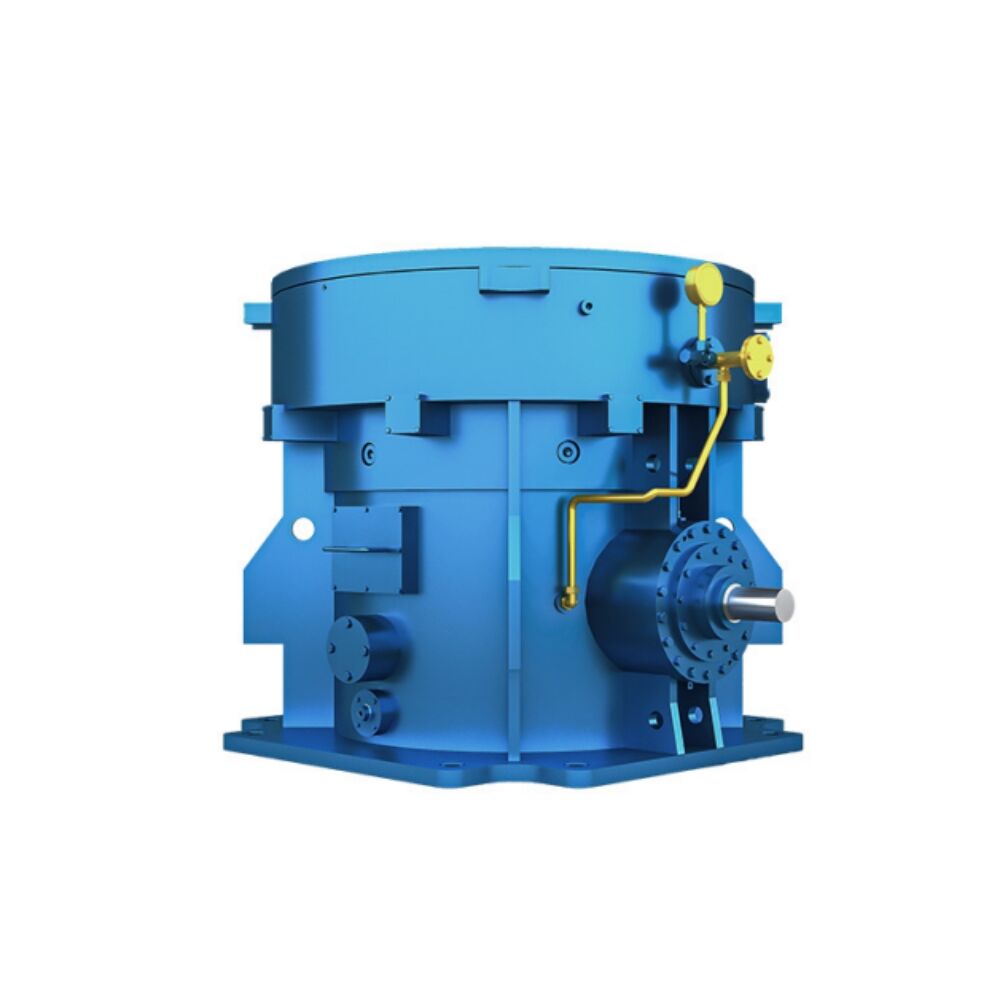

HMV Series Vertical Mill Gearbox 1. Specifications: 20-710 2. Speed Ratio Range: 20-60 3. Rated Power: 80kW-9000kW

2. Mixer

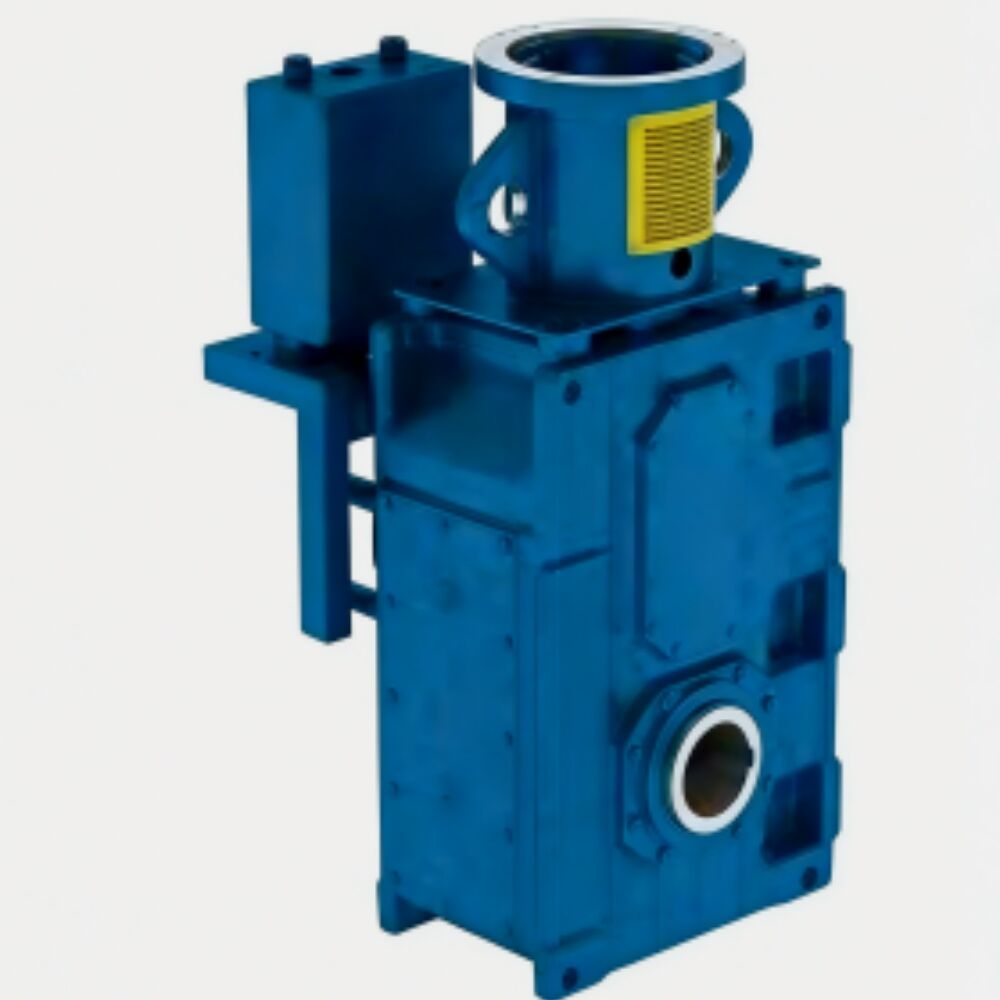

HP Series 1. Power Range: 15-1800KW 2. Model Specifications: 2-22 3. Speed Ratio Range: 20-450

Conveying Equipment

1. Belt Conveyor

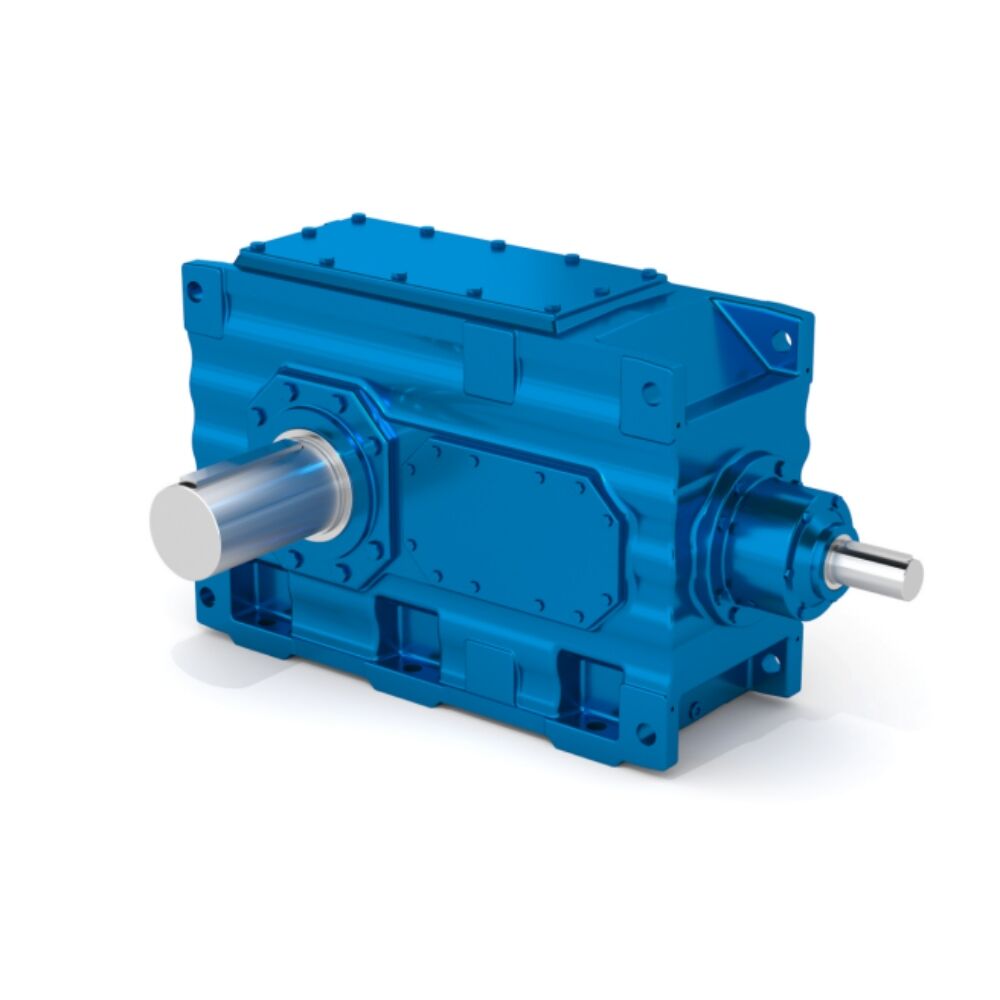

HPZ Series - Belt Conveyor Drive / Mixer Drive / Rotary Kiln Drive / Classifier Drive 1. Power Range: 30-2000KW 2. Model Specifications: 2-28 3. Speed Ratio Range: 20-450

2. Stacker-Reclaimer

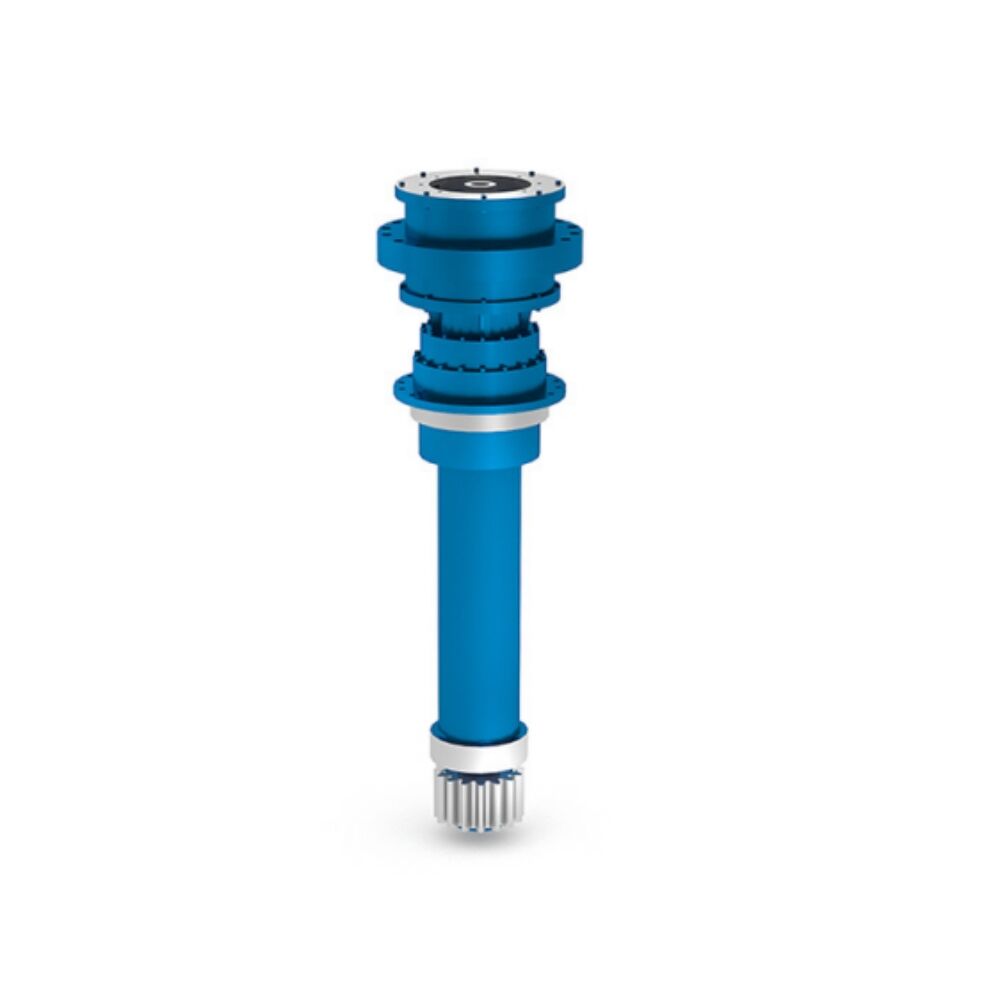

HE Series Rotary Planetary Gearbox 1. Power Range: 15-2000KW 2. Model Specifications: 10-50 3. Speed Ratio Range: 20-450

3. Coal Slurry Pump

HP Series 1. Power Range: 15-2000KW 2. Model Specifications: 2-25 3. Speed Ratio Range: 20-450

Coking Equipment

1. Coke Pusher

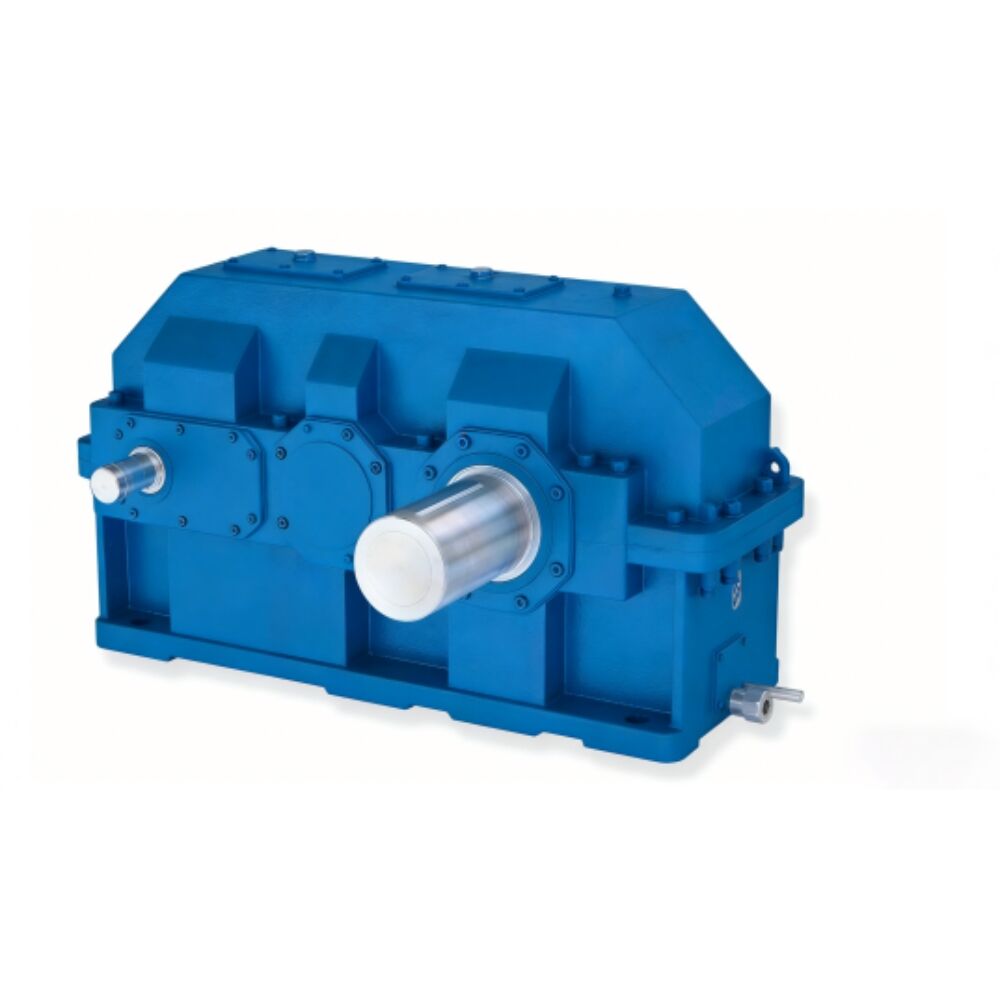

HZ Series Industrial Gearbox 1. Power Range: 15-500KW 2. Model Specifications: 2-8 3. Speed Ratio Range: 14-250

2. Coke Quenching Car for Stamping Coke Oven

HP Series 1. Power Range: 15-2000KW 2. Model Specifications: 2-28 3. Speed Ratio Range: 20-450

3. Coke Dry Quenching Hoist

HPL Extended Center Distance Series Power Range: 30-2000KW Specifications: 7~22 Gear Ratio Range: 20~450

Power and environmental protection equipment

1. Air Compressor

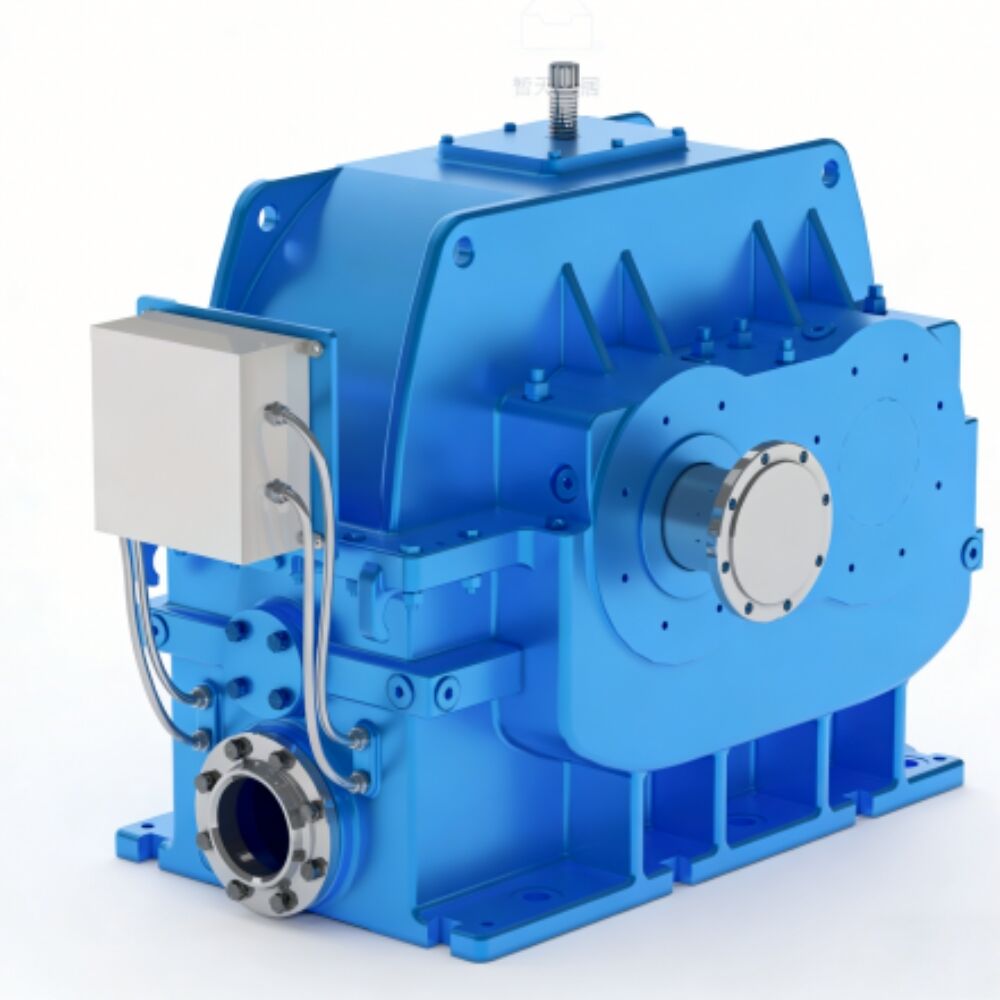

HHC Series Compressor High-Speed Gearbox Speed: 1500 rpm ~ 50000 rpm Power: 200 kW ~ 30 MW Single-stage Speed Ratio: 4.67 ~ 13.3

2. Steam Turbine

HHT Series Gas Turbine Speed Reducer Speed: 1500rpm~10000rpm Power: 50MW~100MW Torque: 160kNM~320kNM

3. Feedwater Pump

HHS Series High-Speed Gearboxes Speed: 1500rpm~20000rpm Power: 200kW~50MW Single-stage Gear Ratio: 1.2~7.3

4. Air-cooled island

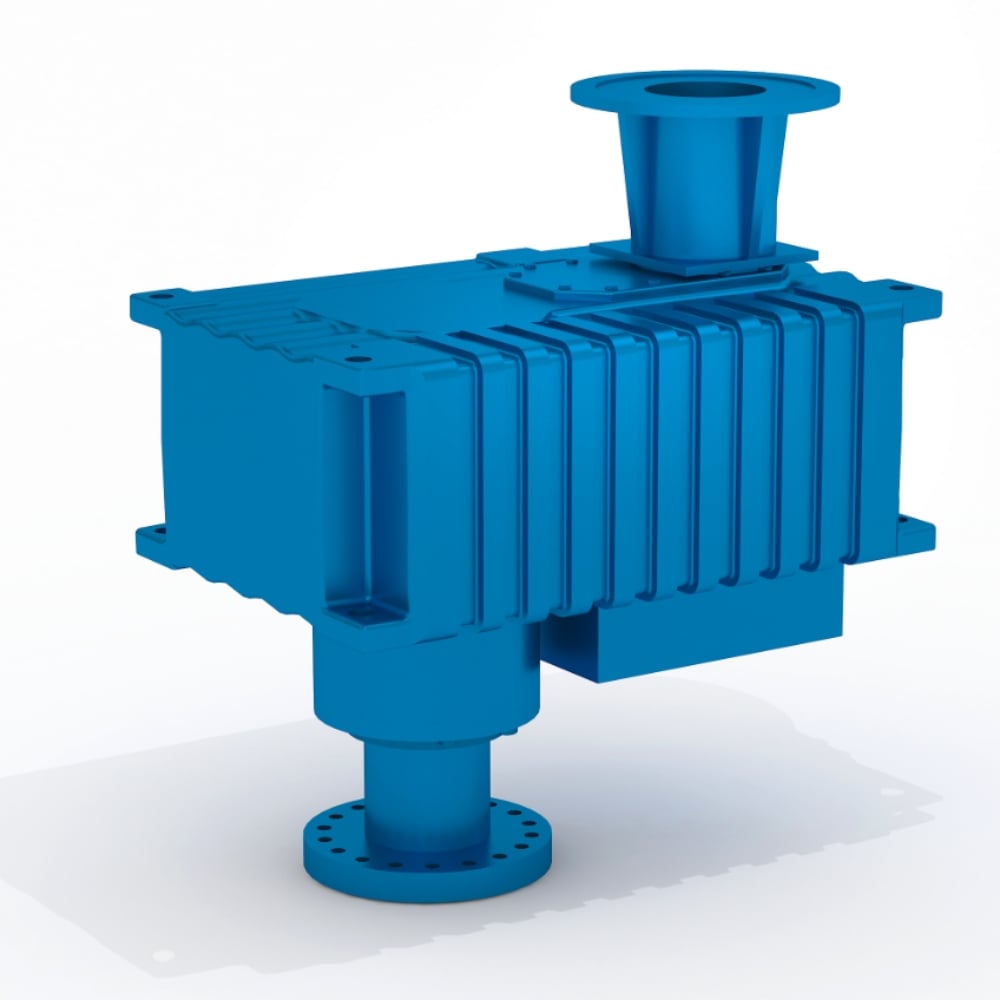

HPC Series Air-Cooled Island Gearbox 1. Power Range: 15-1600KW 2. Model Specifications: 2-18 3. Speed Ratio Range: 20-90

5. Desulfurization Pump

1. Power Range: 15-2000KW 2. Model Specifications: 2-28 3. Speed Ratio Range: 20-450

6. Mixing Equipment

1. Power Range: 15-1800KW 2. Model Specifications: 4-22 3. Speed Ratio Range: 20-400

7. Wastewater treatment

1. Power Range: 15-800KW 2. Model Specifications: 2-12 3. Speed Ratio Range: 20-450

Common Gearbox Issues and Solutions

1. Oil Leakage
Solutions:
Unique sealing structure and machining processes, high-quality sealing components. Floating oil seals are optimized for clearance and material selection based on operating conditions, ensuring superior performance.

2. Overheating
Solutions:
High-precision transmission components reduce heat generation. The gearbox housing features a contoured design with protrusions and indentations to increase heat dissipation area. Dedicated auxiliary cooling accessories such as axial flow fans and air-cooling modules effectively prevent overheating.

3. Tooth Surface Pitting, Tooth Breakage, Shaft Breakage
Solutions:
Internationally advanced design concepts, high-performance alloy materials, exquisite manufacturing processes, and strict quality control.

4. Difficult Maintenance and Repair
Solutions:
Inventory of parts and complete machines is available, allowing for delivery of finished parts within 24 hours. Additionally, online monitoring system interfaces are reserved, which can be selected based on customer needs to enable remote fault diagnosis and reduce maintenance costs.

5. Long Delivery Time
Solutions:
The variety and specifications of major parts are limited, and a stock production model is adopted. Standard products can be supplied within 6 weeks, and customized products within 8 weeks.

6. High Operating Cost
Solutions:
Advanced design concepts and strict manufacturing processes ensure high product reliability and long-term stable operation. Low failure rate significantly reduces operating costs.
