planetary reducer

A planetary reducer represents a sophisticated mechanical transmission system that delivers exceptional torque multiplication and speed reduction capabilities across diverse industrial applications. This advanced gearing mechanism consists of three primary components: a central sun gear, multiple planet gears arranged around the sun gear, and an outer ring gear that encases the entire assembly. The planetary reducer operates by distributing rotational forces through its multi-gear configuration, enabling efficient power transmission while maintaining compact dimensions. The sun gear receives input power from the motor or drive source, transferring motion to the planet gears that rotate both on their individual axes and orbit around the sun gear. This dual motion creates the reduction ratio that makes planetary reducers highly effective for applications requiring precise speed control and substantial torque output. The technological features of planetary reducers include high torque density, exceptional load distribution, and superior efficiency ratings typically exceeding 95 percent. These systems offer multiple reduction stages within a single housing, allowing engineers to achieve significant speed reductions without requiring extensive space or multiple gear assemblies. The coaxial input and output configuration simplifies installation and integration into existing machinery designs. Planetary reducers find extensive applications across manufacturing industries, robotics, aerospace systems, wind turbines, construction equipment, and automotive sectors. In manufacturing environments, these reducers power conveyor systems, automated assembly lines, and precision machining equipment where consistent speed control and high torque output are essential. Robotic applications benefit from the planetary reducer's compact design and precise positioning capabilities, enabling accurate movement control in automated systems. The aerospace industry relies on planetary reducers for landing gear systems, flight control mechanisms, and satellite positioning equipment where reliability and weight considerations are critical. Wind energy systems utilize large planetary reducers to convert low-speed rotor rotation into appropriate generator speeds, maximizing energy conversion efficiency while withstanding harsh environmental conditions.

New Product Recommendations

VIEW DETAILS

Parallel-shaft Gear Motor

VIEW DETAILS

Helical Gearbox

VIEW DETAILS

Helical-Bevel Gearbox

VIEW DETAILS

Custom Non-Standard Gearbox

The planetary reducer delivers substantial benefits that make it an ideal choice for demanding industrial applications requiring reliable power transmission solutions. These advanced systems provide exceptional torque multiplication capabilities, often achieving reduction ratios ranging from 3:1 to 1000:1 within a single unit, eliminating the need for multiple gear stages that consume valuable space and increase maintenance requirements. The compact design allows engineers to integrate powerful reduction capabilities into space-constrained environments where traditional gear systems cannot fit effectively. Superior load distribution represents another significant advantage, as the planetary configuration spreads forces across multiple planet gears rather than concentrating stress on single gear teeth. This distribution mechanism reduces wear patterns, extends component lifespan, and enables the system to handle higher torque loads without premature failure or performance degradation. The coaxial input and output arrangement simplifies installation procedures and reduces alignment complexities that often plague other gear systems, resulting in faster setup times and lower installation costs for maintenance teams. High efficiency ratings, typically exceeding 95 percent in most operating conditions, translate directly into reduced energy consumption and lower operating expenses over the equipment's lifetime. This efficiency stems from the planetary reducer's ability to engage multiple gear meshes simultaneously, minimizing power losses through friction and heat generation. The system's inherent balance eliminates vibration issues commonly associated with other gear arrangements, resulting in smoother operation, reduced noise levels, and extended bearing life throughout connected machinery. Planetary reducers offer exceptional durability under continuous operation cycles, maintaining consistent performance even in harsh industrial environments with temperature fluctuations, contamination exposure, and varying load conditions. The multiple planet gears provide built-in redundancy, allowing the system to continue operating effectively even if one planet gear experiences issues, ensuring uninterrupted production capabilities. These reducers accommodate both direction rotation and variable speed requirements without modification, providing operational flexibility that adapts to changing production demands. The precise speed control capabilities enable accurate positioning in automated systems, while the high torque output supports heavy-duty applications without requiring oversized motors or additional amplification equipment.

Latest News

Jan

A Warm Invitation to Visit Our Manufacturing Base

Jan

Precision Quality Control: Safeguarding High-Precision Heavy-Duty Gear Transmission Release Date: August 20 , 2025

Jan

R&D Innovation Upgrade: Focus on Heavy-Duty Conditions, Empower Transmission Tech Breakthroughs

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

planetary reducer

planetary gearbox suppliers

industrial planetary gearbox

worm planetary gearbox

high precision planetary gearbox

heavy duty planetary gearbox

low cost planetary gearbox

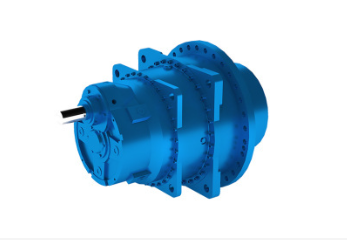

Exceptional Torque Density and Compact Design

The planetary reducer's most compelling advantage lies in its extraordinary ability to deliver massive torque multiplication within an incredibly compact footprint, making it the preferred solution for space-critical applications across industries. This remarkable torque density stems from the unique planetary configuration where multiple planet gears simultaneously engage with both the central sun gear and outer ring gear, effectively distributing load forces across numerous contact points rather than relying on single gear mesh arrangements found in conventional systems. The result is a dramatic increase in torque handling capacity without proportional increases in overall system size or weight. In practical terms, a planetary reducer occupying the same space as a traditional gear system can deliver three to five times greater torque output, enabling engineers to specify smaller, lighter equipment packages that still meet demanding performance requirements. This space efficiency proves invaluable in mobile equipment designs, robotic applications, and automated machinery where every cubic inch matters for operational effectiveness and cost optimization. The coaxial input and output configuration further enhances the compact advantage by eliminating the need for right-angle drives or complex mounting arrangements that add bulk and complexity to mechanical systems. Manufacturing facilities benefit significantly from this compactness as it allows installation of powerful drive systems in confined spaces between production lines, under conveyor systems, or within tight equipment housings where traditional gear arrangements simply cannot fit. The planetary reducer's ability to achieve high reduction ratios in a single stage eliminates the cascading size increases associated with multi-stage conventional gearboxes, resulting in dramatic space savings and simplified mechanical designs. This compactness also translates into reduced material costs, lighter shipping weights, and simplified installation procedures that decrease overall project expenses while improving system reliability through fewer mechanical connections and alignment points.

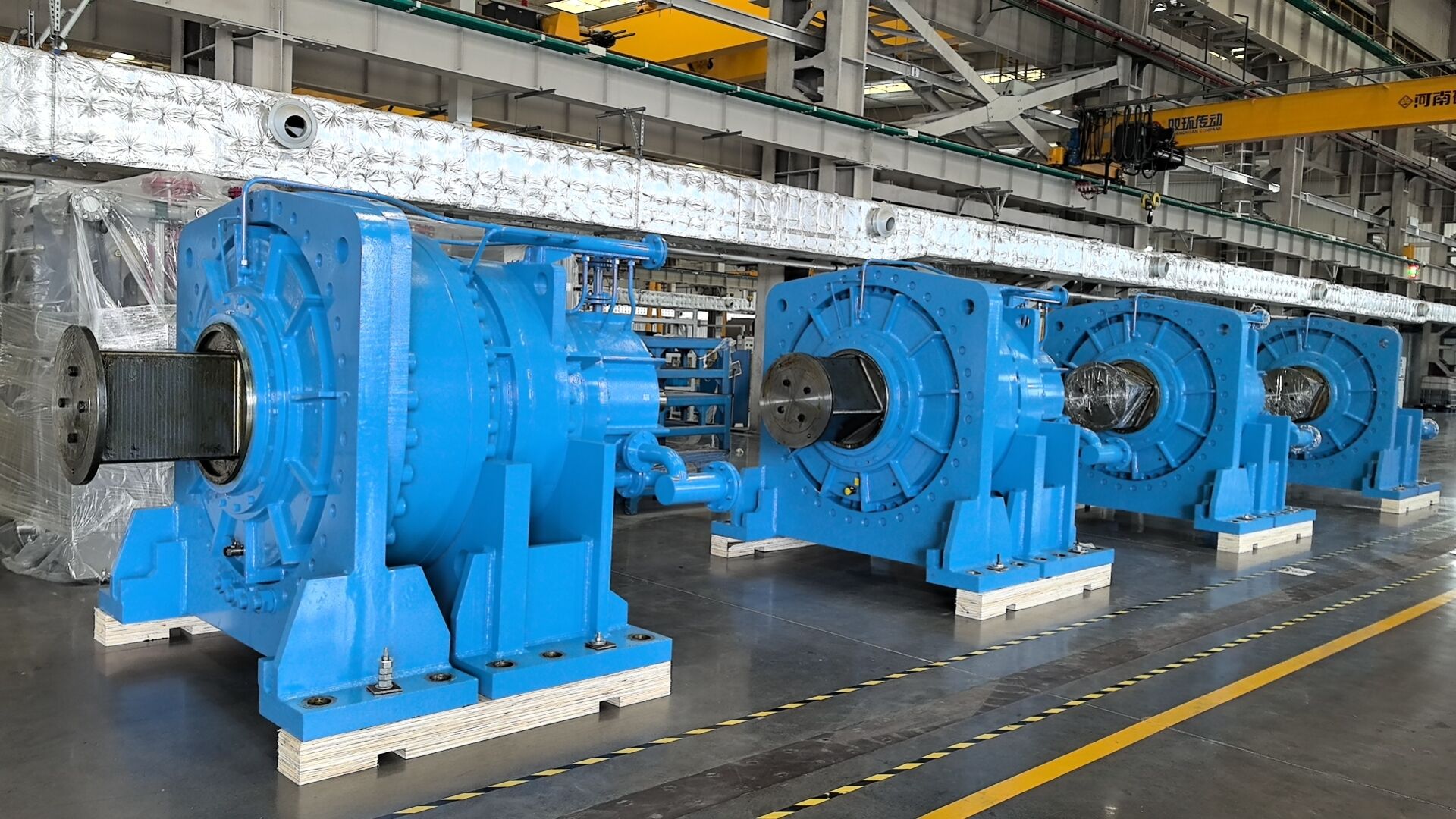

Superior Load Distribution and Extended Service Life

The planetary reducer's revolutionary load distribution mechanism fundamentally changes how mechanical forces are managed and dissipated throughout the gear system, resulting in dramatically extended service intervals and reduced maintenance costs that provide substantial long-term value for industrial operations. Unlike conventional gear systems that concentrate forces on individual gear teeth at single mesh points, the planetary configuration distributes torque loads across multiple planet gears simultaneously, with each planet gear carrying only a fraction of the total system load. This distribution principle means that a planetary reducer with four planet gears shares the total torque load among four separate gear meshes, effectively reducing stress concentrations by 75 percent compared to single-mesh alternatives. The reduced stress levels translate directly into extended component lifespans, often doubling or tripling the service life of critical gear components while maintaining consistent performance characteristics throughout the operational period. This load sharing arrangement also provides inherent system redundancy, as the failure of a single planet gear does not immediately disable the entire system, allowing continued operation at reduced capacity until scheduled maintenance can be performed. The balanced configuration eliminates harmful vibrations and dynamic loads that typically accelerate wear in conventional gear systems, resulting in smoother operation and reduced stress on connected bearings, seals, and housing components. Manufacturing operations particularly benefit from this enhanced durability as it translates into reduced unplanned downtime, lower spare parts inventory requirements, and extended intervals between major overhauls. The consistent load distribution also enables planetary reducers to handle shock loads and torque spikes more effectively than conventional systems, making them ideal for applications with variable or unpredictable loading conditions such as mining equipment, construction machinery, and material handling systems where operational demands can change rapidly and dramatically.

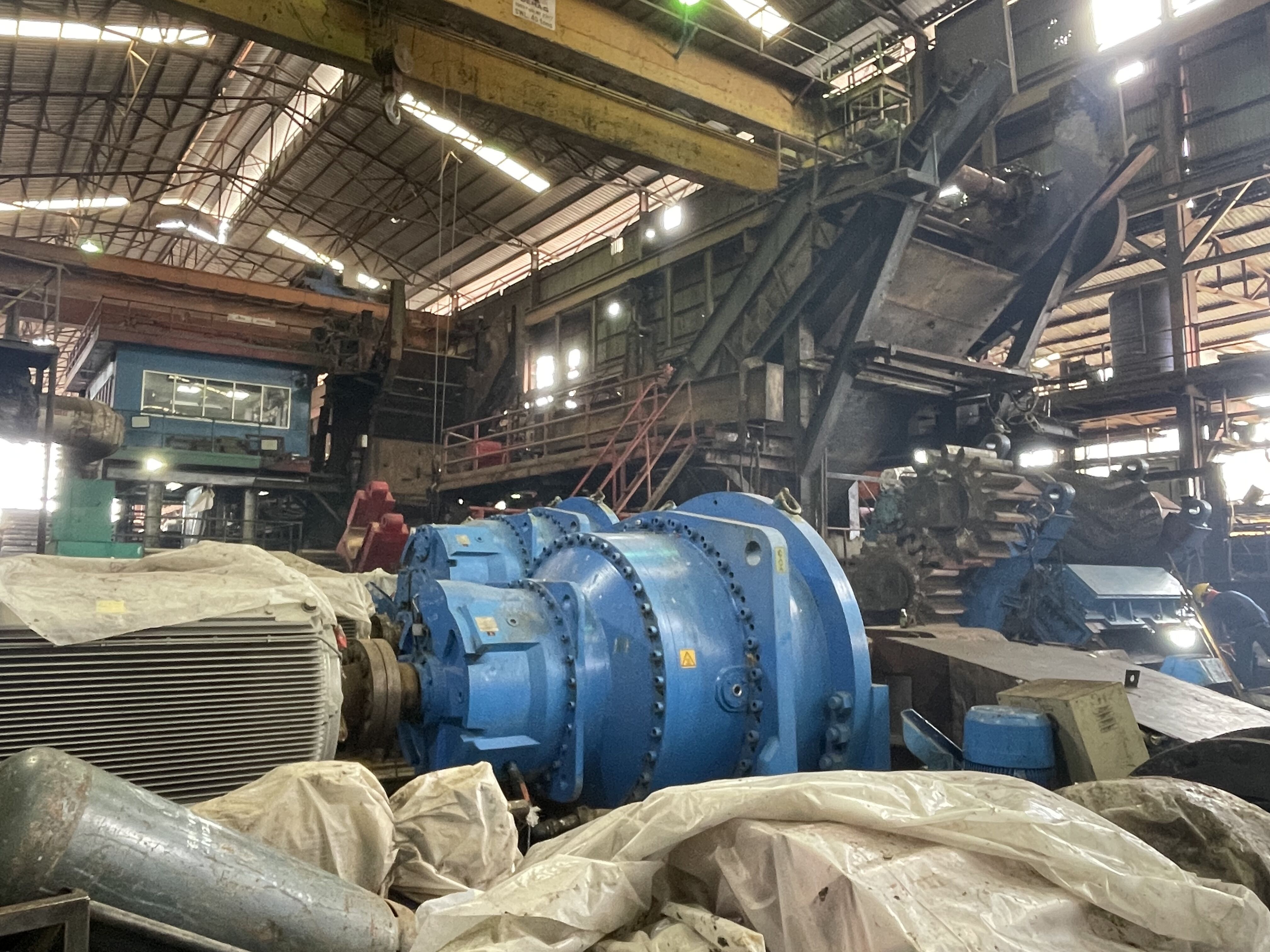

Exceptional Efficiency and Energy Savings

The planetary reducer achieves remarkable efficiency levels that typically exceed 95 percent under normal operating conditions, delivering substantial energy savings and operational cost reductions that compound significantly over the system's operational lifetime. This exceptional efficiency stems from the simultaneous engagement of multiple gear meshes within the planetary arrangement, which minimizes power losses through friction while maximizing the mechanical advantage gained through the gear reduction process. The multiple planet gears share the transmitted power, reducing the sliding friction that occurs at individual gear mesh points and converting more input energy into useful output torque rather than waste heat. This efficiency advantage becomes increasingly valuable in applications requiring continuous operation, where even small percentage improvements in efficiency translate into substantial energy cost savings over months and years of operation. Industrial facilities operating multiple planetary reducer systems can realize significant reductions in electrical consumption, often recovering the initial equipment investment through energy savings alone within the first few years of operation. The high efficiency also reduces heat generation within the gear system, extending lubricant life and reducing cooling requirements that further decrease operational expenses. In renewable energy applications such as wind turbines, the planetary reducer's efficiency directly impacts the amount of electrical energy generated from available wind resources, making projects more financially viable and environmentally beneficial. The efficient operation also reduces the sizing requirements for prime movers, as less input power is wasted through the transmission system, allowing the use of smaller, less expensive motors or engines that still deliver the required output performance. This efficiency advantage compounds in multi-stage applications where the cumulative effect of high-efficiency operation at each reduction stage results in overall system efficiencies that far exceed alternative gear arrangements, making planetary reducers the preferred choice for demanding industrial applications where energy costs represent a significant portion of operational expenses.
