helical planetary gearbox

A helical planetary gearbox represents an advanced mechanical transmission system that combines the efficiency of helical gears with the compact design of planetary gear arrangements. This sophisticated engineering solution utilizes angled teeth cut in a helical pattern around gear wheels, creating smoother operation and enhanced load distribution compared to traditional straight-cut gears. The helical planetary gearbox consists of three primary components: a central sun gear, multiple planet gears that orbit around the sun gear, and an outer ring gear that contains the entire assembly. The main functions of this transmission system include speed reduction, torque multiplication, and precise motion control across various industrial applications. The helical tooth design significantly reduces noise levels and vibration while improving power transmission efficiency. These gearboxes excel at converting high-speed, low-torque input into low-speed, high-torque output, making them essential for applications requiring substantial mechanical advantage. Technological features include superior load-carrying capacity due to multiple gear mesh points, enhanced durability through optimized stress distribution, and compact footprint that maximizes power density. The helical planetary gearbox finds extensive applications in robotics, automotive systems, wind turbines, industrial automation, marine propulsion, aerospace equipment, and heavy machinery. Manufacturing processes typically involve precision machining, heat treatment, and quality control measures to ensure consistent performance standards. Modern designs incorporate advanced materials and surface treatments that extend operational life and reduce maintenance requirements. The planetary configuration allows for multiple gear ratios within a single housing, providing flexibility for diverse operational requirements. Integration capabilities with servo motors, stepper motors, and hydraulic systems make these gearboxes versatile solutions for complex mechanical systems requiring reliable power transmission and precise positioning control.

New Product Recommendations

VIEW DETAILS

Helical Gear Motor

VIEW DETAILS

Helical-Worm Gear Motor

VIEW DETAILS

Helical Gearbox

VIEW DETAILS

Bucket Elevator Gearbox

The helical planetary gearbox delivers exceptional performance benefits that directly translate into cost savings and operational efficiency for users across multiple industries. First, the superior load distribution achieved through multiple planet gears simultaneously sharing the transmitted load results in significantly higher torque capacity compared to traditional gearbox designs. This enhanced load-sharing capability allows equipment to handle heavier workloads while maintaining consistent performance standards, ultimately extending operational lifespan and reducing replacement costs. Second, the helical tooth geometry creates gradual engagement between gear surfaces, dramatically reducing operational noise levels and eliminating the harsh vibrations commonly associated with straight-cut gears. This smoother operation translates into improved working conditions, reduced wear on connected components, and enhanced precision in applications requiring stable motion control. Third, the compact design of the helical planetary gearbox maximizes power density, allowing users to achieve substantial torque multiplication within minimal installation space. This space efficiency proves particularly valuable in applications where size constraints limit equipment options, enabling engineers to specify more powerful drive systems without compromising overall system design. Fourth, the high transmission efficiency, typically exceeding 95 percent in quality units, minimizes energy losses during operation, resulting in lower operating costs and reduced environmental impact. Fifth, the inherent redundancy provided by multiple planet gears enhances system reliability, as the failure of a single gear does not immediately compromise overall functionality. This built-in safety factor reduces downtime risks and maintenance costs while improving system availability. Sixth, the balanced planetary configuration eliminates radial loads on input and output shafts, reducing stress on bearings and connected equipment while extending component life. Seventh, maintenance requirements remain minimal due to enclosed operation and optimized lubrication systems that protect internal components from contamination. Finally, the wide range of available gear ratios allows users to select optimal configurations for specific applications, ensuring maximum efficiency and performance optimization.

Tips And Tricks

Jan

A Warm Invitation to Visit Our Manufacturing Base

Jan

Precision Quality Control: Safeguarding High-Precision Heavy-Duty Gear Transmission Release Date: August 20 , 2025

Jan

R&D Innovation Upgrade: Focus on Heavy-Duty Conditions, Empower Transmission Tech Breakthroughs

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

helical planetary gearbox

planetary gearbox reducer

planetary gearbox manufacturers

planetary reducer

small planetary gearbox

automatic planetary gearbox

high precision planetary gearbox

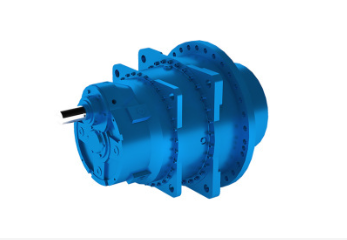

Revolutionary Load Distribution Technology

The helical planetary gearbox incorporates groundbreaking load distribution technology that fundamentally transforms how mechanical power transmits through gear systems. Unlike conventional gearboxes that rely on single gear mesh points, this innovative design utilizes multiple planet gears simultaneously engaging with both the central sun gear and outer ring gear, creating numerous load-sharing paths throughout the transmission system. This multi-path load distribution dramatically increases the overall torque capacity while reducing stress concentrations on individual gear teeth, resulting in substantially extended operational life and enhanced reliability. The helical tooth profile further optimizes this load distribution by ensuring gradual engagement across the entire tooth face, eliminating sudden load impacts that typically cause premature wear and failure in traditional gear systems. This advanced engineering approach enables the helical planetary gearbox to handle significantly higher loads than comparable conventional designs while maintaining compact dimensions and lightweight construction. The practical benefits for customers include reduced maintenance costs, extended equipment lifespan, and improved operational reliability, particularly in demanding applications such as heavy industrial machinery, mining equipment, and large-scale automation systems. Additionally, the superior load distribution capability allows users to specify smaller, more cost-effective gearbox units for given torque requirements, resulting in both initial cost savings and ongoing operational benefits. The technology also provides inherent overload protection, as the distributed loading naturally accommodates temporary peak loads without catastrophic failure, ensuring continued operation during demanding conditions. This revolutionary approach to load management represents a significant advancement in mechanical transmission technology, offering customers unprecedented reliability and performance in critical applications where downtime costs are substantial and operational consistency is paramount.

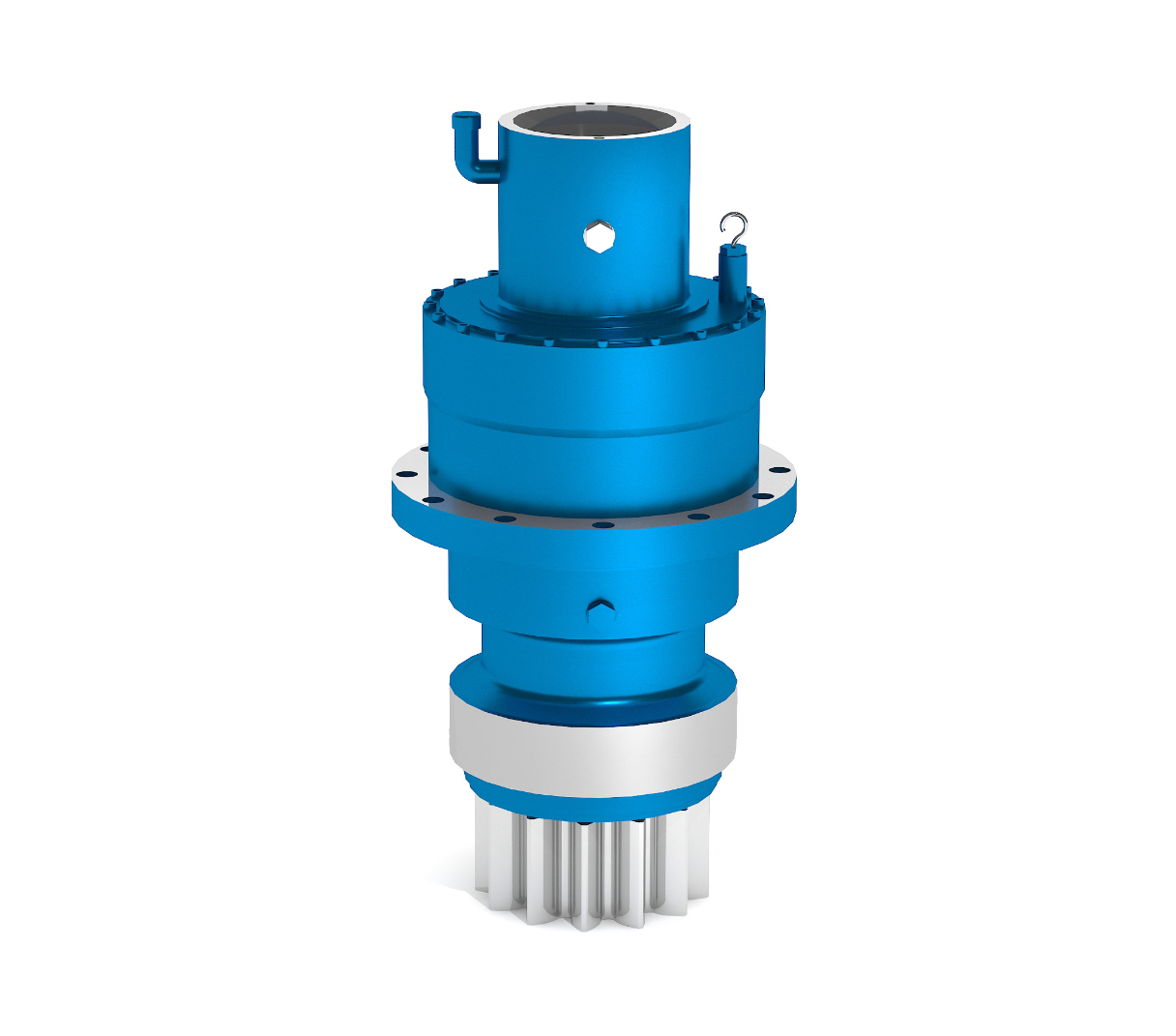

Advanced Noise Reduction and Smooth Operation

The helical planetary gearbox features advanced noise reduction technology that delivers exceptionally smooth and quiet operation, addressing one of the most significant challenges in mechanical transmission systems. The helical tooth geometry creates a unique engagement pattern where gear teeth make contact gradually rather than abruptly, eliminating the sudden impacts and vibrations that characterize straight-cut gear systems. This progressive engagement significantly reduces operational noise levels, often achieving reductions of 10-15 decibels compared to conventional planetary gearboxes, creating more comfortable working environments and enabling installation in noise-sensitive applications. The smooth operation extends beyond mere noise reduction, delivering precise motion control that proves essential in applications requiring high positioning accuracy and consistent velocity profiles. The continuous engagement of multiple helical teeth ensures uniform torque transmission without the pulsating effects common in other gear designs, resulting in smoother machine operation and improved product quality in manufacturing processes. For customers, this translates into multiple practical benefits including compliance with workplace noise regulations, reduced need for sound dampening enclosures, and improved precision in automated processes. The enhanced smoothness also reduces stress on connected components such as bearings, couplings, and drive motors, extending their operational life and reducing maintenance requirements throughout the entire drive system. In applications such as precision manufacturing, robotics, and medical equipment, the superior motion quality enables tighter tolerances and improved performance consistency. The reduced vibration levels also minimize structural fatigue in supporting equipment and foundations, particularly important in long-term installations where cumulative stress effects can lead to costly structural repairs. Furthermore, the quiet operation enables installation in environments previously unsuitable for mechanical drive systems, expanding application possibilities and providing customers with greater flexibility in system design and installation planning.

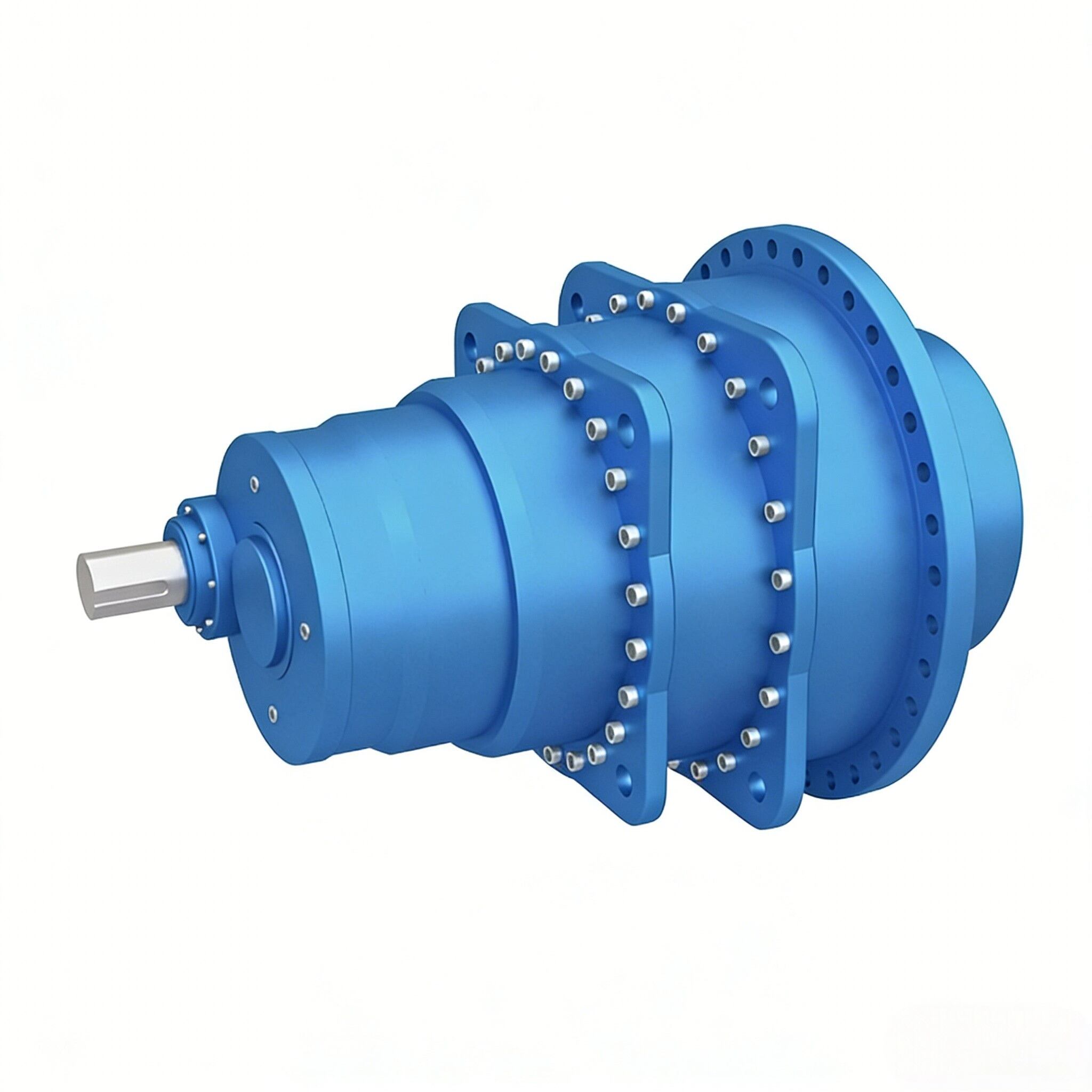

Exceptional Efficiency and Compact Design Integration

The helical planetary gearbox achieves exceptional transmission efficiency while maintaining remarkably compact dimensions, delivering unmatched power density that revolutionizes space-constrained applications. The advanced engineering design typically achieves transmission efficiencies exceeding 95 percent, significantly outperforming many alternative transmission technologies and translating directly into reduced energy consumption and lower operating costs for customers. This high efficiency results from optimized gear geometry, precision manufacturing tolerances, and advanced lubrication systems that minimize internal friction losses while maximizing power transfer effectiveness. The compact planetary configuration concentrates substantial torque multiplication capability within minimal installation space, enabling engineers to specify powerful drive systems without compromising overall equipment design or requiring extensive modifications to accommodate larger transmission components. This space efficiency proves particularly valuable in mobile equipment, aerospace applications, and automated manufacturing systems where every cubic inch of space carries premium value. The integrated design approach allows seamless incorporation with various motor types, including servo motors, stepper motors, and hydraulic drives, providing customers with flexible installation options and simplified system integration. The reduced footprint also translates into material savings in supporting structures and enclosures, contributing to overall project cost reductions. Additionally, the high power-to-weight ratio achieved through advanced materials and optimized design enables portable applications and reduces shipping costs for mobile equipment. The compact design facilitates maintenance accessibility, as technicians can service these units in confined spaces where larger conventional gearboxes would require extensive equipment removal for routine maintenance. For customers operating in competitive markets, the combination of high efficiency and compact design provides significant advantages in both initial equipment costs and ongoing operational expenses, while the space savings enable more flexible equipment layouts and improved overall system performance.
