A heavy duty planetary gearbox represents a sophisticated mechanical transmission system designed to handle extreme operational demands across industrial environments. This robust power transmission solution utilizes a planetary gear arrangement featuring a central sun gear, multiple planet gears, and an outer ring gear to deliver exceptional torque multiplication and speed reduction capabilities. The heavy duty planetary gearbox excels in applications requiring substantial load capacity, precise motion control, and reliable performance under challenging operating conditions. Its compact design philosophy maximizes power density while minimizing installation footprint, making it an ideal choice for space-constrained industrial applications. The technological features of a heavy duty planetary gearbox include hardened steel construction, precision machined components, and advanced lubrication systems that ensure extended operational life. Multiple gear stages can be combined to achieve higher reduction ratios, typically ranging from 3:1 to over 1000:1, depending on specific application requirements. The planetary configuration distributes load forces evenly across multiple gear teeth, significantly reducing stress concentrations compared to conventional gear arrangements. This load distribution mechanism enables the heavy duty planetary gearbox to handle substantially higher torque values while maintaining smooth operation. Advanced sealing systems protect internal components from environmental contamination, while robust bearing assemblies support radial and axial loads effectively. The applications for heavy duty planetary gearbox systems span numerous industries including mining equipment, construction machinery, wind energy generation, steel production, cement manufacturing, and marine propulsion systems. These gearboxes serve critical roles in conveyor systems, crusher drives, mill operations, and heavy lifting equipment where reliability and durability are paramount concerns for operational success and safety compliance.

New Product Releases

VIEW DETAILS

Helical Gear Motor

VIEW DETAILS

Parallel-shaft Gear Motor

VIEW DETAILS

High-Speed Gearbox

VIEW DETAILS

Custom Non-Standard Gearbox

The heavy duty planetary gearbox offers numerous compelling advantages that make it the preferred transmission solution for demanding industrial applications. First and foremost, this gearbox design delivers exceptional torque capacity that surpasses conventional gear systems by distributing loads across multiple planet gears simultaneously. This load sharing mechanism allows the heavy duty planetary gearbox to handle significantly higher input torques while maintaining compact external dimensions. The inherent design provides superior power-to-weight ratios compared to helical or worm gear alternatives, making it particularly valuable in applications where space limitations and weight considerations are critical factors. Another significant advantage lies in the remarkable efficiency levels achieved by heavy duty planetary gearbox systems, typically ranging from 94% to 98% per stage. This high efficiency translates directly into reduced energy consumption, lower operating costs, and decreased heat generation during operation. The planetary configuration also enables multiple reduction stages within a single housing, eliminating the need for separate gear units and reducing overall system complexity. Maintenance requirements for heavy duty planetary gearbox systems are substantially lower than conventional alternatives due to the even load distribution and reduced gear tooth wear patterns. The shared loading mechanism means individual components experience less stress, resulting in extended service intervals and reduced replacement part costs. The coaxial input and output arrangement simplifies installation procedures and reduces alignment requirements, saving valuable time during initial setup and subsequent maintenance activities. Operational smoothness represents another key advantage, as the multiple meshing points inherent in planetary designs create continuous power transmission with minimal vibration and noise generation. This smooth operation reduces stress on connected equipment and improves overall system reliability. The heavy duty planetary gearbox also provides excellent overload capacity, allowing temporary peak loads without immediate failure. Precise speed control and consistent output characteristics make these gearboxes ideal for applications requiring accurate positioning and controlled motion profiles. Temperature stability and consistent performance across varying environmental conditions ensure reliable operation in challenging industrial settings where other transmission types might fail or require frequent adjustment.

Tips And Tricks

Jan

A Warm Invitation to Visit Our Manufacturing Base

Jan

Precision Quality Control: Safeguarding High-Precision Heavy-Duty Gear Transmission Release Date: August 20 , 2025

Jan

R&D Innovation Upgrade: Focus on Heavy-Duty Conditions, Empower Transmission Tech Breakthroughs

Get a Free Quote

Our representative will contact you soon.

Name

Company Name

Message

0/1000

heavy duty planetary gearbox

planetary gearbox suppliers

planetary gearbox manufacturers

small planetary gearbox

automatic planetary gearbox

worm planetary gearbox

heavy duty planetary gearbox

Superior Load Distribution and Torque Capacity

The heavy duty planetary gearbox employs an innovative load distribution mechanism that sets it apart from traditional gear transmission systems. Unlike conventional gear arrangements where power flows through a single meshing point, the planetary configuration distributes torque loads across multiple planet gears simultaneously, typically three to six depending on the specific design requirements. This fundamental design principle allows the heavy duty planetary gearbox to handle substantially higher torque values while maintaining relatively compact external dimensions. Each planet gear carries an equal share of the total load, which means the system can accommodate torque levels that would quickly overwhelm single-path transmission systems. The load sharing effect reduces individual gear tooth stress by factors of three to six, directly correlating to the number of planet gears employed in the configuration. This stress reduction translates into dramatically extended component life expectancy and improved reliability under continuous heavy-duty operation. The planet gears orbit around the central sun gear while meshing with both the sun gear and the outer ring gear, creating multiple simultaneous engagement points that ensure smooth power transmission even under extreme loading conditions. The heavy duty planetary gearbox design also incorporates advanced material science, utilizing case-hardened alloy steels and precision heat treatment processes to maximize gear tooth durability. Surface hardness levels typically exceed 60 HRC while maintaining tough, resilient core materials that resist shock loading and fatigue failure. The superior load distribution capability enables the heavy duty planetary gearbox to operate at higher power densities than competing technologies, making it particularly valuable in applications where space constraints limit the physical size of transmission components. Industries such as mining, construction, and heavy manufacturing benefit significantly from this enhanced load capacity, as equipment can operate at higher productivity levels while maintaining acceptable safety margins and service life expectations.

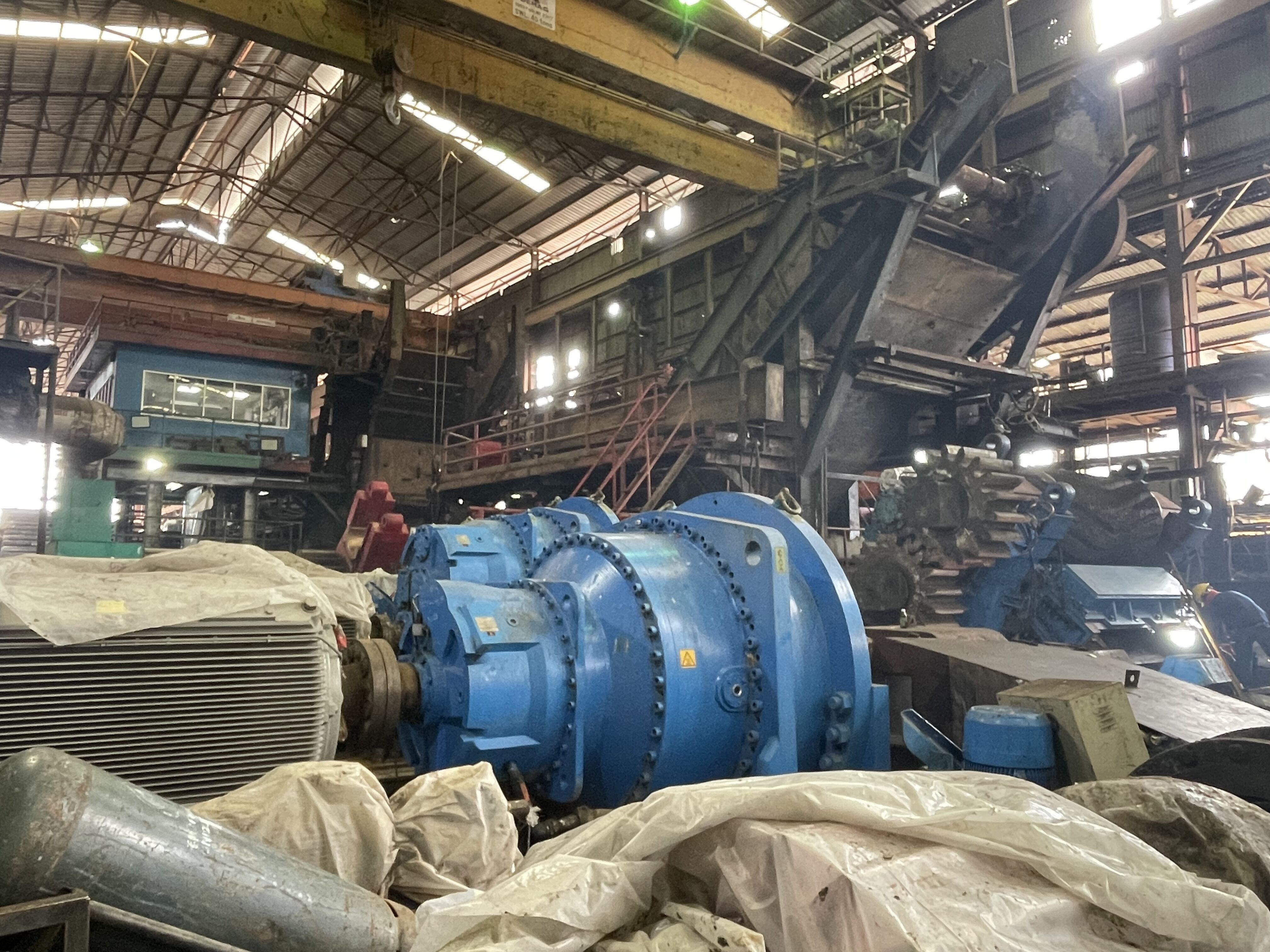

Exceptional Efficiency and Energy Performance

The heavy duty planetary gearbox achieves remarkable efficiency levels that directly impact operational costs and environmental sustainability across industrial applications. Modern heavy duty planetary gearbox designs consistently deliver efficiency ratings between 94% and 98% per reduction stage, significantly outperforming worm gear systems and many helical gear arrangements. This exceptional efficiency stems from the fundamental planetary gear geometry, which minimizes sliding friction while maximizing rolling contact between gear teeth. The multiple meshing points distribute power transmission loads, reducing individual tooth loading and associated friction losses that typically plague single-path gear systems. Lower friction translates directly into reduced heat generation, which further improves efficiency while extending component service life. The heavy duty planetary gearbox maintains these high efficiency levels across varying load conditions, unlike some transmission types that experience significant efficiency degradation at partial loads. This consistent performance characteristic proves particularly valuable in applications with variable duty cycles or fluctuating power requirements. Energy savings achieved through high-efficiency operation accumulate substantially over extended operational periods, often justifying the initial investment in heavy duty planetary gearbox technology through reduced electricity costs alone. Environmental benefits include lower carbon footprint due to reduced energy consumption and decreased waste heat generation that might otherwise require additional cooling systems. The efficient operation also reduces stress on prime movers such as electric motors or engines, potentially extending their service life and reducing maintenance requirements. Multi-stage heavy duty planetary gearbox configurations can achieve overall efficiency levels exceeding 90% even with high reduction ratios that would severely compromise efficiency in alternative transmission designs. Advanced lubrication systems specifically designed for planetary configurations further enhance efficiency by maintaining optimal lubricant film thickness and reducing churning losses. Temperature stability of high-efficiency operation ensures consistent performance across seasonal variations and different operating environments, providing predictable energy consumption patterns that facilitate accurate operational cost forecasting and budgeting processes.

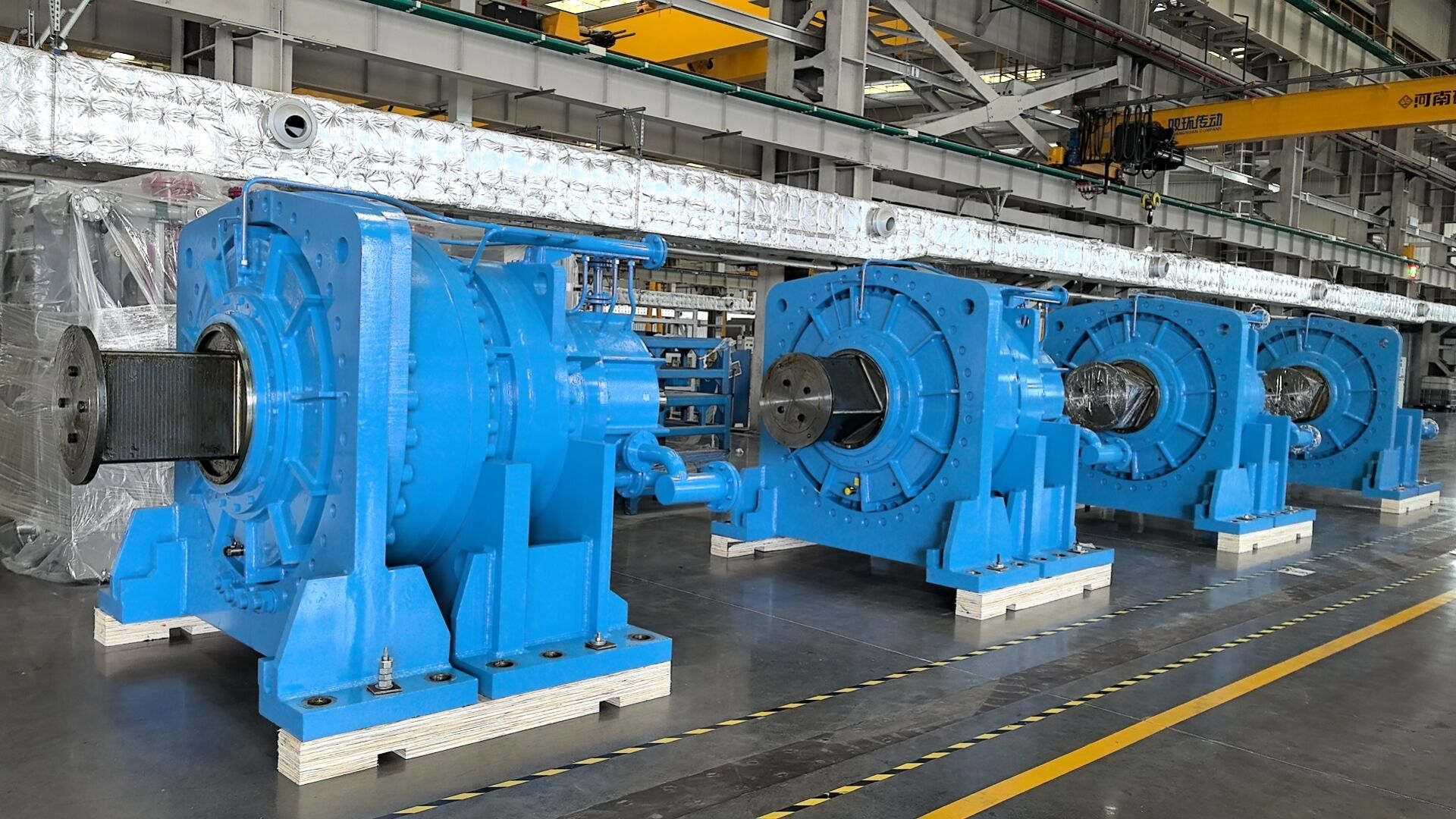

Compact Design with High Power Density

The heavy duty planetary gearbox revolutionizes space utilization in industrial applications through its remarkably compact design that delivers exceptional power density compared to conventional transmission alternatives. The coaxial input and output configuration eliminates the offset requirements typical of helical and bevel gear systems, allowing direct in-line installation that simplifies mounting procedures and reduces overall system footprint. This space-efficient design proves particularly valuable in retrofit applications where existing equipment layouts cannot accommodate larger transmission components. The planetary arrangement concentrates multiple gear reductions within a single housing, achieving reduction ratios that would require multiple separate gear units in conventional designs. A heavy duty planetary gearbox can deliver reduction ratios exceeding 100:1 within a single-stage housing, while multi-stage configurations can achieve ratios over 1000:1 without requiring external mounting space for intermediate gear units. The compact envelope enables equipment designers to optimize overall machine layouts, potentially reducing frame sizes, support structure requirements, and associated material costs. Installation flexibility represents another significant advantage of the compact heavy duty planetary gearbox design, as the symmetrical housing configuration permits mounting in any orientation without compromising performance or lubrication effectiveness. This mounting flexibility proves particularly valuable in mobile equipment applications where space constraints and weight distribution requirements dictate specific component placement. The reduced footprint also simplifies maintenance access, as technicians can service the heavy duty planetary gearbox without disturbing adjacent equipment or requiring extensive disassembly procedures. Transportation and handling advantages emerge from the compact design, as complete heavy duty planetary gearbox assemblies can often be shipped as single units rather than requiring field assembly of multiple components. This approach reduces installation time, eliminates field alignment procedures, and ensures proper factory testing and quality control. The high power density achieved through compact design also enables equipment manufacturers to offer higher performance specifications within existing product envelope constraints, potentially improving market competitiveness and customer value propositions.
