High Precision Planetary Gearbox - Ultra-Low Backlash, High Torque Transmission Solutions

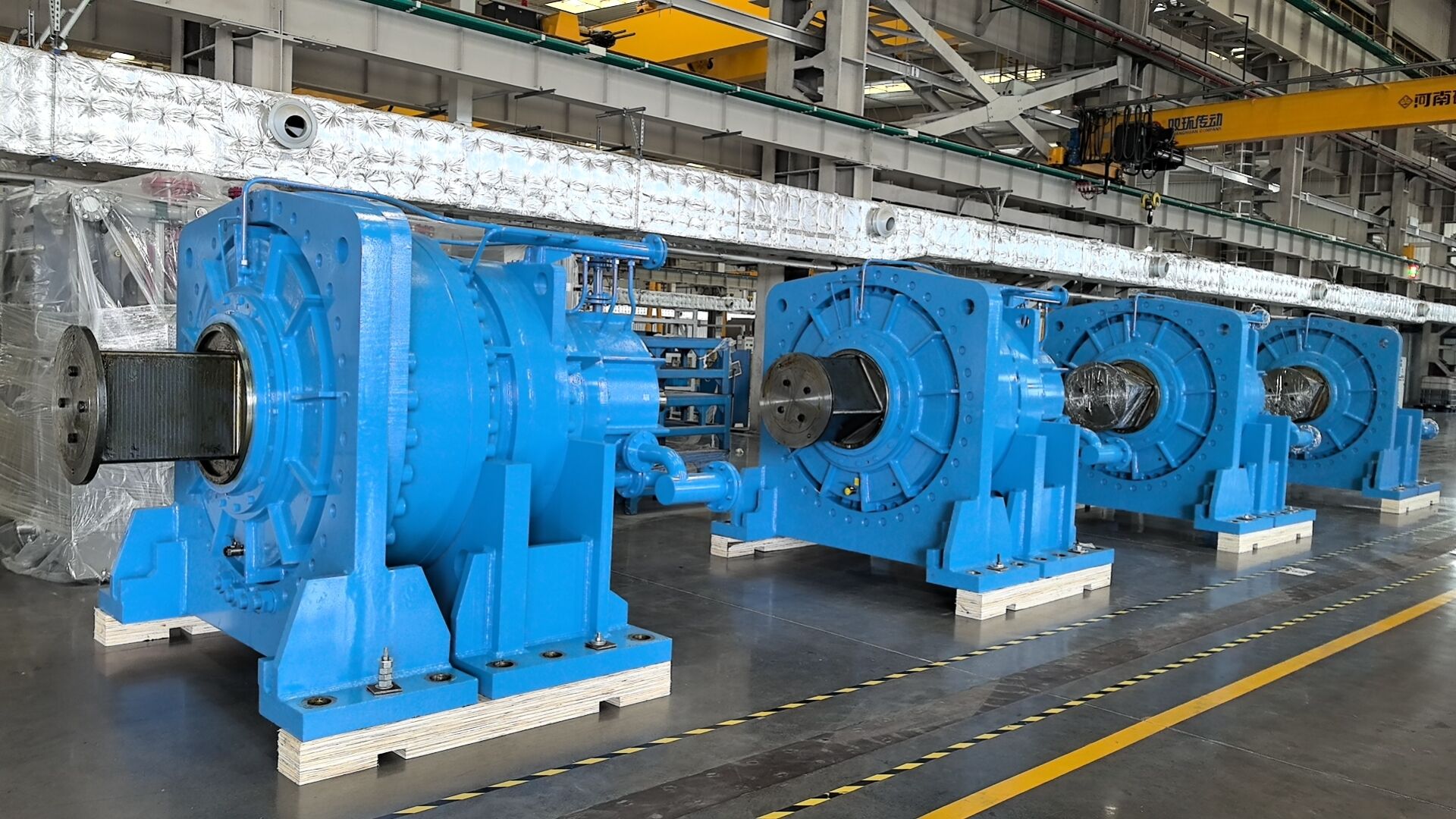

The ultra-low backlash technology incorporated in high precision planetary gearboxes represents a breakthrough in mechanical transmission design that addresses one of the most critical challenges in precision motion control applications. Traditional gear systems suffer from inherent backlash caused by necessary clearances between mating gear teeth, which creates dead zones during directional changes and compromises positional accuracy. The high precision planetary gearbox employs advanced manufacturing techniques and specialized design features to minimize this backlash to levels typically below 3 arcminutes, with premium models achieving even lower values. This exceptional precision stems from precision-ground gear teeth manufactured to tolerances measured in micrometers, ensuring optimal gear mesh engagement throughout the entire operating range. The planetary gear arrangement naturally reduces backlash through its multiple engagement points, where each planet gear simultaneously meshes with both the sun gear and ring gear, creating a self-centering effect that eliminates radial play. Specialized preloading mechanisms within the high precision planetary gearbox further reduce backlash by maintaining constant tooth contact under varying load conditions. This technology proves essential in applications requiring precise positioning such as robotic joints, CNC machine tools, and automated assembly equipment where even minute positioning errors can result in defective products or system failures. The benefits extend beyond simple positioning accuracy to include improved system response times, as the elimination of dead zones allows for immediate torque transmission during directional changes. This responsiveness enhances overall system dynamics and enables more aggressive motion profiles without compromising accuracy. Quality control processes ensure consistent backlash levels across production batches, providing engineers with predictable performance characteristics for system design calculations. The ultra-low backlash technology in high precision planetary gearboxes ultimately enables manufacturers to achieve tighter production tolerances, reduce scrap rates, and improve overall product quality while maintaining high production speeds.

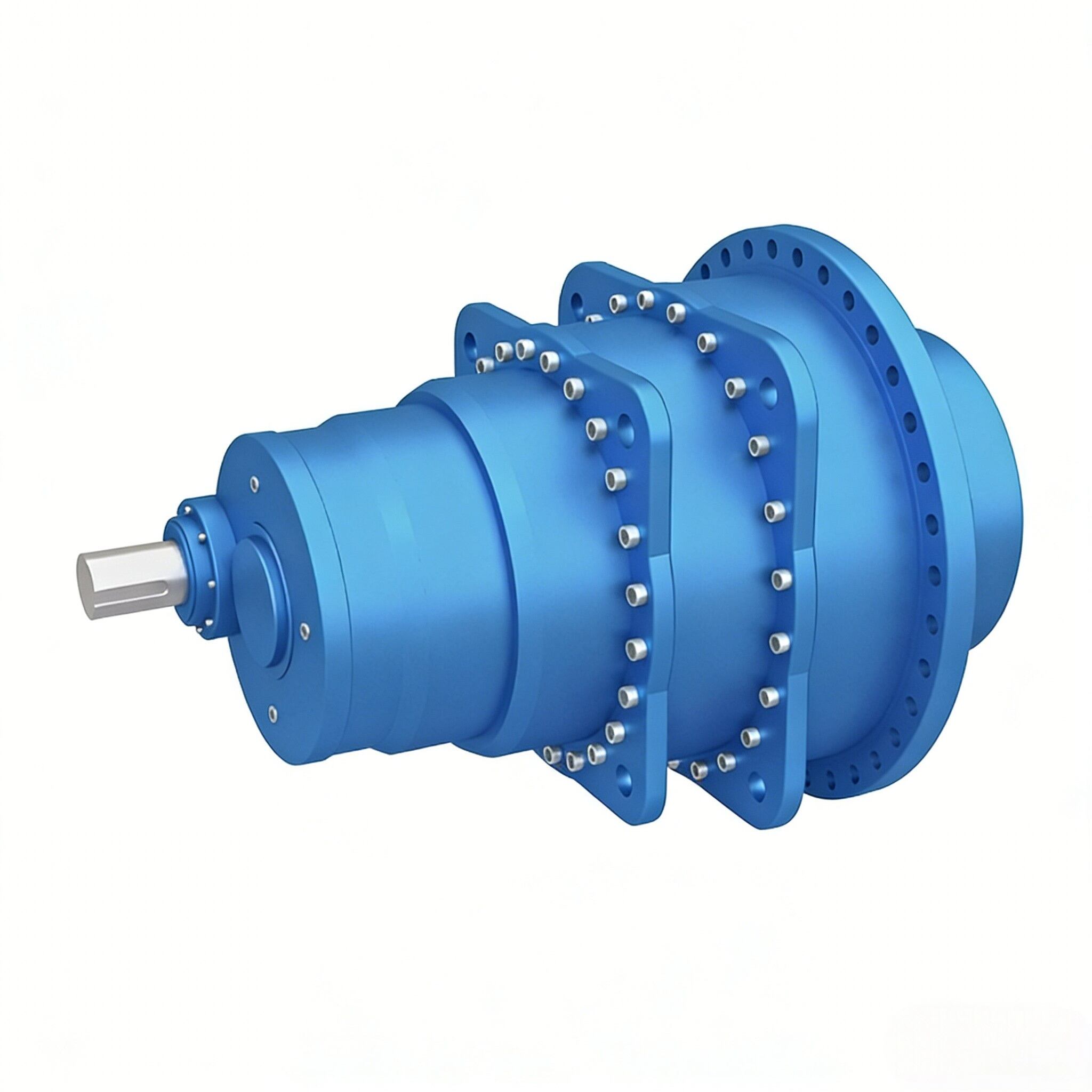

The exceptional torque density achieved by high precision planetary gearboxes fundamentally changes the equation for mechanical power transmission by delivering substantially higher torque output within significantly smaller package dimensions compared to conventional gear reduction systems. This remarkable capability results from the innovative planetary gear configuration where multiple planet gears simultaneously share the transmitted load, effectively multiplying the torque handling capacity without proportionally increasing the overall gearbox size. The high precision planetary gearbox typically achieves torque densities that are 300-500 percent higher than equivalent spur gear reducers, enabling engineers to specify more compact drive systems for space-constrained applications. The load sharing mechanism distributes forces across multiple gear meshes simultaneously, reducing individual gear tooth stresses and enabling the use of smaller, lighter components while maintaining superior strength characteristics. This distributed loading approach also contributes to extended service life as no single gear pair bears the full transmitted torque, resulting in more uniform wear patterns and reduced maintenance requirements. The compact form factor of the high precision planetary gearbox proves particularly valuable in applications such as robotics, aerospace systems, and mobile equipment where weight and space considerations are paramount. Engineers can now design more efficient drive trains that deliver required performance levels while minimizing system complexity and reducing installation costs. The high torque capacity enables direct coupling to high-power motors without requiring additional gear stages, simplifying system architecture and improving overall efficiency. Material science advances incorporated in modern high precision planetary gearboxes include case-hardened gear steels and advanced bearing technologies that support the high stress levels inherent in high torque density applications. Thermal management becomes critical at these power levels, and sophisticated lubrication systems ensure adequate heat dissipation while maintaining optimal viscosity characteristics. The exceptional torque density ultimately enables equipment manufacturers to develop more competitive products by reducing size, weight, and cost while improving performance capabilities and reliability standards.

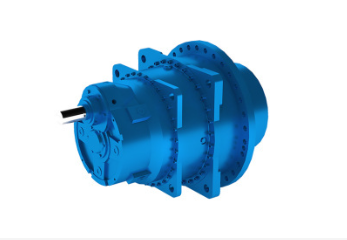

The superior efficiency characteristics of high precision planetary gearboxes represent a significant technological advancement that delivers substantial energy conservation benefits and operational cost reductions across diverse industrial applications. Modern high precision planetary gearbox designs consistently achieve efficiency ratings exceeding 95 percent, with premium models reaching 97-98 percent efficiency levels that surpass virtually all other mechanical transmission alternatives. This exceptional efficiency stems from the fundamental planetary gear architecture where power transmission occurs through multiple parallel paths, reducing losses at individual gear meshes and minimizing internal friction. The high precision planetary gearbox utilizes advanced gear tooth profiles optimized through computer modeling to minimize sliding friction while maximizing rolling contact, resulting in reduced energy dissipation during operation. Precision manufacturing processes ensure optimal gear mesh alignment that eliminates efficiency-robbing contact pattern irregularities common in conventional gear systems. High-quality synthetic lubricants specifically formulated for planetary gear applications reduce internal friction coefficients while providing superior protection against wear and oxidation. The sealed housing design prevents lubricant contamination that could compromise efficiency over time, maintaining consistent performance throughout the service life. Energy conservation benefits become particularly significant in continuous duty applications where the high precision planetary gearbox operates for thousands of hours annually, as even small efficiency improvements translate into substantial electricity cost savings. The reduced heat generation associated with high efficiency operation eliminates the need for external cooling systems in many applications, further reducing energy consumption and system complexity. Environmental benefits include reduced carbon footprint from lower power consumption and extended equipment life that reduces manufacturing and disposal impacts. The high efficiency characteristics enable the use of smaller motors for equivalent output requirements, reducing initial equipment costs and ongoing energy expenses. Predictable efficiency curves across the operating speed range allow engineers to accurately calculate system power requirements and optimize motor selection for maximum overall efficiency. The superior efficiency of high precision planetary gearboxes ultimately contributes to more sustainable manufacturing operations while providing quantifiable economic benefits through reduced energy costs and improved system reliability.
